How to take advantage of the SQL Server’s transaction log?

Introduction

SQL Server keeps track of all database modifications and every database transaction. This is done in a file called the transaction log or TLOG. This transaction log is particular to a SQL Server database and there is, at least, one transaction log per SQL Server database.

As explained on MSDN, the transaction log is a critical component of the database and, if there is a system failure, the transaction log might be required to bring your database back to a consistent state. The transaction log should never be deleted or moved unless you fully understand the ramifications of doing this.

So, we can conclude that the information contained inside the transaction log is valuable and maybe we could even take advantage of this information to answer questions like “Who is responsible for this table drop?” or “When did the operation occurred?” in order to recover a data alteration or data loss. Let’s explore which tools can help and what we actually can do with it…

Why getting back information from transaction log?

Let’s say there is an issue: somebody dropped a table or deleted rows in a particular table and you want to get the version of those rows just before he dropped it. Well, you’ve well done your job and have taken backups but, in general, you can’t simply restore it (somewhere else than on the production database) and take back data because the time between the last backup and the moment when the person who did the mistake actually fired its DROP or DELETE query.

To be able to do it and being sure of the data we get back, we need to know precisely in which transaction the query was executed so that we can get a Log Sequence Number (LSN) and be able to use the STOPBEFOREMARK option of RESTORE LOG command like the code below.

RESTORE LOG WITH STOPBEFOREMARK = 'lsn:';

How to get back information from the transaction log?

The first way to have access to information inside the transaction log is to use DBCC LOG(<DbName>) command. But as you will see in the figure below, we won’t go that far with its output: you don’t know anything about the object that has been impacted and it’s not really helpful in recovery.

Fortunately, there is another way. Unfortunately, this operation will require the use of undocumented SQL functions and, since they are not documented by Microsoft, they are not supported and you must use it at your own risk.

The first one we will discuss is called sys.fn_dblog. This function reads the active part of the transaction log in a log sequence number (LSN) interval. What I call “the active part of a transaction” is the portion of the transaction log where transaction details are still there and have not been truncated. The truncation can happen automatically if the database is in simple recovery model, when a TRUNCATE LOG operation has been fired or after a backup occurred.

You will find below a simple way to call it:

SELECT *

FROM fn_dblog(NULL, NULL) -- (StartLSN,StopLSN) – NULL means Everything

-- The LSN must be decimal "X:Y:Z"

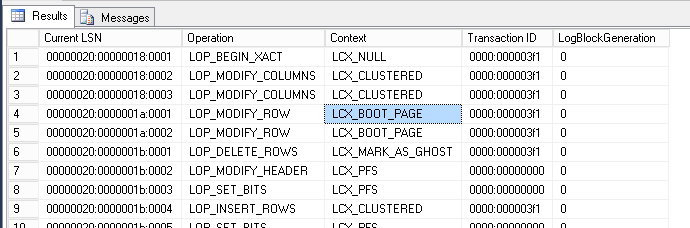

Here is a sample result. As you can see, the first columns are [CurrentLSN] and [Operation]. The former allows to know the log sequence number corresponding to the entry in transaction log while the latter tells the kind of operation that have been made. There is also a [TransactionId] column. So, we can tell what have been done for a single TransactionId and maybe. Two columns that are not displayed here but seem interesting is [AllocUnitId] and [AllocUnitName].

One more word about the way to call the sys.fn_dblog function is that, as written in the code sample above, you can’t use as a parameter the values returned by the function in the [CurrentLSN] column. The reason is that the [CurrentLSN] value is expressed in hexadecimal and the function takes decimal expressions of the LSN. So, you need to convert a [CurrentLSN] value before using it. There are multiple ways to do it: either using a website resource like BinaryHexConverter. To get it right, you will have to firstly split the [CurrentLSN] value into three pieces using the ‘:’ character as separator then convert each individual value using the website and finally concatenate everything with the ‘:’ character in the same order. The operation is quite the same if you want to use this LSN in conjunction with the STOPBEFOREMARK option of RESTORE LOG command: you still split the [CurrentLSN] the same way but concatenate differently. In fact, the difference resides in the fact that the second number is padded by leading 0 so that its length is 10 digits and the third number is padded by leading 0 so that its length is 5 digits.

As an alternative, you can use the bit of T-SQL code shown below:

SET NOCOUNT ON

DECLARE @LSN NVARCHAR(64);

SET @LSN = 'CHANGEME' ;

-- To test :

-- SELECT TOP 1 [Current LSN] FROM fn_dblog(NULL, NULL)

DECLARE @LSN_Decimal NVARCHAR(64); -- LSN expression to use with fn_dblog, db_dump_dblog

DECLARE @LSN_Decimal2 NVARCHAR(64); -- LSN expression to use with STOPBEFOREMARK

DECLARE @tsql NVARCHAR(MAX);

DECLARE @tbl TABLE (

id INT identity(1,1),

val VARCHAR(16)

);

-- Extract first part

SET @tsql = 'SELECT CONVERT(VARCHAR(16),CAST(0x' + SUBSTRING(@LSN, 1, 8) + ' AS INT))';

INSERT INTO @tbl

EXEC(@tsql);

SELECT @LSN_Decimal = val , @LSN_Decimal2 = val FROM @tbl;

-- table variable => SQL Server always thinks it only returns 1 row.

-- deleting content

delete from @tbl;

SET @tsql = 'SELECT CONVERT(VARCHAR(16),CAST(0x' + SUBSTRING(@LSN, 10, 8) + ' AS INT))';

INSERT INTO @tbl

EXEC(@tsql);

SELECT @LSN_Decimal = @LSN_Decimal + ':' + val,

@LSN_Decimal2 = @LSN_Decimal2 +

RIGHT('0000000000'+isnull(val,''),10) /*10 digits*/

FROM @tbl;

delete from @tbl;

SET @tsql = 'SELECT CONVERT(VARCHAR(16),CAST(0x' + SUBSTRING(@LSN, 19, 4) + ' AS INT))';

INSERT INTO @tbl

EXEC(@tsql);

SELECT

@LSN_Decimal = @LSN_Decimal + ':' + val,

@LSN_Decimal2 = @LSN_Decimal2 +

RIGHT('00000'+isnull(val,''),5) /*5 digits*/

FROM @tbl;

delete from @tbl;

PRINT 'LSN Decimal translation for fn_db_log :' + @LSN_Decimal;

PRINT 'LSN Decimal expression for STOPBEFOREMARK :' + @LSN_Decimal2;

Choose :

SELECT *

FROM ::fn_dblog(NULL, @LSN_Decimal);

SELECT *

FROM ::fn_dblog(@LSN_Decimal, NULL);

So, what kind of operations can be found with it? You will find below a partial list of the operations that can be found:

OPERATION	DESCRIPTION
LOP_ABORT_XACT	Indicates that a transaction was aborted and rolled back.
LOP_BEGIN_CKPT	A checkpoint has begun.
LOP_BEGIN_XACT	Indicates the start of a transaction.
LOP_BUF_WRITE	Writing to Buffer.
LOP_COMMIT_XACT	Indicates that a transaction has committed.
LOP_COUNT_DELTA	?
LOP_CREATE_ALLOCCHAIN	New Allocation chain
LOP_CREATE_INDEX	Creating an index.
LOP_DELETE_ROWS	Rows were deleted from a table.
LOP_DELETE_SPLIT	A page split has occurred. Rows have moved physically.
LOP_DELTA_SYSIND	SYSINDEXES table has been modified.
LOP_DROP_INDEX	Dropping an index.
LOP_END_CKPT	Checkpoint has finished.
LOP_EXPUNGE_ROWS	Row physically expunged from a page, now free for new rows.
LOP_FILE_HDR_MODIF	SQL Server has grown a database file.
LOP_FORGET_XACT	Shows that a 2-phase commit transaction was rolled back.
LOP_FORMAT_PAGE	Write a header of a newly allocated database page.
LOP_HOBT_DDL	?
LOP_HOBT_DELTA	?
LOP_IDENT_NEWVAL	Identity’s New reseed values
LOP_INSERT_ROWS	Insert a row into a user or system table.
LOP_LOCK_XACT
LOP_MARK_DDL	Data Definition Language change – table schema was modified.
LOP_MARK_SAVEPOINT	Designate that an application has issued a ‘SAVE TRANSACTION’ command.
LOP_MIGRATE_LOCKS
LOP_MODIFY_COLUMNS	Designates that a row was modified as the result of an Update command.
LOP_MODIFY_HEADER	A new data page created and has initialized the header of that page.
LOP_MODIFY_ROW	Row modification as a result of an Update command.
LOP_PREP_XACT	Transaction is in a 2-phase commit protocol.
LOP_SET_BITS
LOP_SET_BITS	Designates that the DBMS modified space allocation bits as the result of allocating a new extent.
LOP_SET_FREE_SPACE	Designates that a previously allocated extent has been returned to the free pool.
LOP_SORT_BEGIN	A sort begins with index creation. – SORT_END end of the sorting while creating an index.
LOP_SORT_EXTENT	Sorting extents as part of building an index.
LOP_UNDO_DELETE_SPLIT	The page split process has been dumped.
LOP_XACT_CKPT	During the Checkpoint, open transactions were detected.

So, basically, the transaction log contains information not only on DML and DDL operations but also on SQL Server internal operations like a checkpoint, a buffer write or a page split. But it has a limit as explained above. Let’s prove this with this simple example.

--Create DB.

USE [master];

IF(DB_ID('DBLogReading') IS NULL)

Exec sp_executesql N'CREATE DATABASE DBLogReading';

-- Create tables.

USE DBLogReading;

CREATE TABLE [City] (

[CityId] INT IDENTITY,

[Country] CHAR (32) DEFAULT 'Belgium',

[Name] CHAR (32) DEFAULT 'Liege',

[LastVisitDate] DATETIME DEFAULT GETDATE ()

);

-- Insert some data

SET NOCOUNT ON

USE DBLogReading

INSERT INTO City DEFAULT VALUES ;

GO 100

-- How many rows returned by fn_dblog ?

SELECT COUNT(*)

FROM fn_dblog(null,null)

-- take a backup

BACKUP DATABASE DBLogReading TO DISK = 'D:\Backup\DBLogReading_Full.bak'

-- How many rows returned by fn_dblog ?

SELECT COUNT(*)

FROM fn_dblog(null,null)

The figure below is the output of the batch presented above.

You should see a tremendous reduction in the number of returned values. For me, it passed from 545 to 10. This means that the inactive part of the transaction log which tracked the transactions has been dumped to a backup file and the original entries from the log file have been flushed which means the log truncation can occur to reduce space consumption inside the transaction log.

You will find demos later. Those demos are a step by step procedure to recover data after a DELETE or DROP operation has occurred using sys.fn_dblog function.

Before jumping to the other function, you will find another query below which just lists committed DML operations. You can customize it to get some other information:

SELECT

[Current LSN],

[Transaction ID],

[Operation],

[Transaction Name],

[CONTEXT],

[AllocUnitName],

[Page ID],

[Slot ID],

[Begin Time],

[End Time],

[Number of Locks],

[Lock Information]

FROM sys.fn_dblog(NULL,NULL)

WHERE Operation IN

('LOP_INSERT_ROWS','LOP_MODIFY_ROW',

'LOP_DELETE_ROWS','LOP_BEGIN_XACT','LOP_COMMIT_XACT')

How to get back information from a transaction log backup file?

Here again, you must use it at your own risks and according to Paul Randal on his blog post, it seems that every time this function is called, a new SQLOS scheduler and three threads are created. Those threads won’t disappear until a server restart. Still according to Paul Randal, this has been addressed as a bug to Microsoft. It’s fixed in SQL Server 2012 SP2+ and SQL Server 2014 but won’t be backported to SQL Server 2008 (R2).

This function has a lot of parameters. The two first parameters are the same as sys.fn_dblog i.e. an interval in LSN. Then it takes a device type which can be NULL (which means DISK and is the default value), ‘DISK’, ‘TAPE’, or ‘VIRTUAL_DEVICE’. The next parameter is called @seqnum with a default value of 1. I don’t currently know its meaning. Finally, there are 64 parameters for specifying paths to a log backup device.

Here is its interface:

create function sys.fn_dump_dblog (

@start nvarchar (25) = NULL,

@end nvarchar (25) = NULL,

@devtype nvarchar (260) = NULL,

--@devtype values: NULL(DISK) | DISK | TAPE | VIRTUAL_DEVICE

@seqnum Int = 1,

@fname1 nvarchar (260) = NULL,

@fname2 nvarchar (260) = NULL,

@fname3 nvarchar (260) = NULL,

...

@fname64 nvarchar (260) = NULL

)

returns table …

Let’s now see an example call, assuming we have a backup file on disk which is on the following path:

1 2	D:\Backup\DBLogReading_log1.bak

When the following query will be fired against a database, we’ll get the same kind of dataset as returned by sys.fn_dblog function:

SELECT *

FROM

fn_dump_dblog (

NULL, NULL, N'DISK', 1, N'D:\Backup\DBLogReading_log1.bak',

DEFAULT, DEFAULT, DEFAULT, DEFAULT, DEFAULT, DEFAULT, DEFAULT,

DEFAULT, DEFAULT, DEFAULT, DEFAULT, DEFAULT, DEFAULT, DEFAULT);

Demos

In the following, we will try two things: recover data after a DELETE statement occurred and recover data after a DROP statement occurred. As the principles are the same for sys.fn_dblog and for sys.fn_dump_dblog functions, we will just use the first one.

Demo setup

Let’s first create a new, empty database and add a simple table inside this database.

--Create DB.

USE [master];

CREATE DATABASE DBLogReading;

-- Create tables.

USE DBLogReading;

CREATE TABLE [City] (

[CityId] INT IDENTITY,

[Country] CHAR (32) DEFAULT 'Belgium',

[Name] CHAR (32) DEFAULT 'Liege',

[LastVisitDate] DATETIME DEFAULT GETDATE ()

);

select OBJECT_ID('dbo.City');

-- Keep the returned Object_ID somewhere (Mine:357576312)

Let’s launch a FULL and a LOG backup to initialize things:

-- FULL Backup

BACKUP DATABASE [DBLogReading]

TO DISK = N'D:\Backup\DBLogReading-InitialFULL.bak'

-- LOG Backup

BACKUP LOG [DBLogReading]

TO DISK = N'D:\Backup\DBLogReading-InitialLog.trn'

We have an empty table but no data into it. Let’s insert some data.

SET NOCOUNT ON

USE DBLogReading

INSERT INTO City DEFAULT VALUES;

GO 100

Use case 1: Recover deleted data and get to know who did it

Let’s pretend we are doing the following operation by error. The operation consists in some data deletion:

USE DBLogReading

DELETE City

WHERE [CityId] < 12

--select min(CityId) from City

We have made some transactions so far. The transaction log must be filled with some useful information and rows have been “unexpectedly” deleted.

The following query calls sys.fn_dblog function and filters its output to only get back information on delete operations in City table:

use DBLogReading

SELECT

[Current LSN],

[Transaction ID],

Operation,

Context,

AllocUnitName

FROM

fn_dblog(NULL, NULL)

WHERE

Operation = 'LOP_DELETE_ROWS'

and AllocUnitName = 'dbo.City' ;

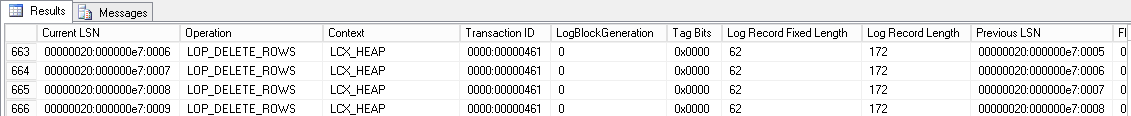

The output of this query is as follows:

With this query, we are able to know the starting LSN for delete operation at which delete operation started for the transaction Id 0000:00000461. But the transaction was already running! We need to find the LSN corresponding to the beginning of the transaction. This can be obtained by filtering the output on LOP_BEGIN_XACT operations only for the given transaction.

The following query will provide this information:

USE DBLogReading

DECLARE @TranId VARCHAR(32);

SET @TranId = '0000:00000461'; -- CHANGEME

SELECT

[Current LSN],

Operation,

[Transaction ID],

[Begin Time],

[Transaction Name],

[Transaction SID]

FROM

fn_dblog(NULL, NULL)

WHERE

[Transaction ID] = @TranId

AND

[Operation] = 'LOP_BEGIN_XACT';

And the winner is:

We now know that the DELETE operation started at [Begin Time] value of the column with LSN 0000020:0000e7:0001

We need to convert this value to decimal using one of the methods described previously and only consider the result for STOPBEFOREMARK option usage. In his case, the value to use is 32000000023100001

By the way, at the same time, we get a [TransactionSID] column which tells us which database user ran the DELETE statement.

We can get to know it by running the following query:

SELECT

SUSER_SNAME(0x0105000000000005150000005FE4EAD69F711842619025A78B530000)

This can be a plus to ensure that it was the good DELETE statement we considered so far.

So, basically, we have the value to use during the last log restore. We have to first restore a full backup media to another location and database with NORECOVERY option enabled then successfully restore logs until the LSN is the expected boundary i.e. 32000000023100001

But before that, we need to run a transaction log backup. That’s because we are using sys.fn_dblog which queries the active part of transaction log. It wouldn’t be the case if we were using sys.fn_dump_dblog since it queries a transaction log backup

-- LOG Backup

BACKUP LOG [DBLogReading]

TO DISK = N'D:\Backup\DBLogReading_logbackup_ThisMorning.trn'

If we had not found the corresponding operation with sys.fn_dblog, we would have used sys.fn_dump_dblog with the last transaction log backup media the same way we did.

Once we have all the transaction log backups needed to recover, we can start restoring. An example code sample is provided below:

--Restoring Full backup with norecovery.

RESTORE DATABASE DBLogReading_COPY

FROM DISK = 'D:\Backup\DBLogReading-InitialFULL.bak'

WITH

MOVE 'DBLogReading' TO 'P:\MSSQL\DBLogReading_copy.mdf',

MOVE 'DBLogReading_log' TO 'L:\MSSQL\DBLogReading_copy_log.ldf',

REPLACE, NORECOVERY;

-- Restore successive Logs with norecovery until we come to

-- the last relievant transaction log backup.

RESTORE LOG DBLogReading_COPY

FROM

DISK = N'D:\Backup\DBLogReading-InitialLog.trn'

WITH NORECOVERY;

--Restore Log backup with STOPBEFOREMARK option to recover exact LSN.

RESTORE LOG DBLogReading_COPY

FROM

DISK = N'D:\Backup\DBLogReading_logbackup_ThisMorning.trn'

WITH

STOPBEFOREMARK = 'lsn:32000000023100001'; -- CHANGEME

If we take a look at the content of City table, we will see that the rows we deleted are present.

The query to check:

select

'Current' as DbType ,

min(CityId) as MinCityID ,

COUNT(*) as CityCount

from DbLogReading.dbo.City

union all

select

'Copy' ,

min(CityId) ,

COUNT(*)

from DbLogReading_COPY.dbo.City;

Its output:

In summary, we’ve found the transaction that did the DELETE operation (this is the hard part of the work in production environment where DELETE statements can occur regularly against multiple tables). Then we got back the LSN corresponding to the beginning of the transaction that contains the DELETE statement. We translated this LSN to a decimal padded value and restored to that LSN in another database. The next step would be to export the deleted rows from the restored database to the actual production database.

Use case 2: Discover LSN corresponding to the start of a table drop operation

As the instructions to restore to a given LSN we get back from sys.fn_dblog and sys.fn_dump_dblog functions, this section will only address the question to retrieving the starting LSN of a transaction which dropped a table.

So, let’s get started by dropping the City table:

USE DBLogReading

DROP TABLE [City]

Let’s look for drop operations in the transaction log. This can be achieved using the following query.

SELECT

[Current LSN],

Operation,

[Transaction Id],

[Transaction SID],

[Transaction Name],

[Begin Time],

[SPID],

[Description],

AllocUnitName

FROM fn_dblog (NULL, NULL)

WHERE [Transaction Name] = 'DROPOBJ'

Well, all the demos I’ve seen on the internet which show this operation only have one row returned. This means only one object has been dropped since last log backup. The authors tell then “ok, we have the LSN, restore to that LSN and everything is gonna be alright.” But, it’s not representative of a true production system where there can be multiple object drops between two transaction log backups, or where the application uses tables for storing kind of “sequence numbers” and drops it daily (seriously, we have an application that does it here). Plus, in my experience, the DBA is rarely called directly after such an error.

Here, we have two rows returned.

Fortunately, we can segregate thanks to the [BeginTime] column in our case (we take the last one). If you remember the previous use case, we also segregated on the [AllocUnitName] column, but this column is null for every row returned. This means that, in some cases, we cannot know with exactitude which [CurrentLSN] value should be taken, but I’ve not seen this warning anywhere on the other demos…

I’ve tried different things but except if you know the Object_ID previously used by the object in the database, it’s more or less impossible to know with precision the right [CurrentLSN] value to be used.

So, to me, it’s more a “guess and check” process than a straightforward step by step procedure. But, when you have a very big database, it’s practically impossible due to the time needed to restore.

By the way, here is a sample code, given as is which extracts information on the object_id of the dropped objects:

if(OBJECT_ID('tempdb..#TransactionLog') IS NOT NULL)

DROP TABLE #TransactionLog ;

if(OBJECT_ID('tempdb..#ObjectInfo') IS NOT NULL)

DROP TABLE #ObjectInfo ;

-- Capture transaction log content

SELECT *

INTO #TransactionLog

FROM fn_dblog (NULL, NULL);

CREATE TABLE #ObjectInfo (

DropStartLSN VARCHAR(32),

TransactionId VARCHAR(32),

ObjectLockLSN VARCHAR(32)

);

WITH DropLSNs

as (

SELECT

[Current LSN],[Transaction ID]

FROM #TransactionLog

WHERE [Transaction Name] = 'DROPOBJ'

)

INSERT INTO #ObjectInfo (

DropStartLSN,TransactionId,ObjectLockLSN

)

select DropLSNs.[Current LSN],DropLSNs.[Transaction ID],MIN(f.[Current LSN]) as LockObjectLSN

FROM DropLSNs

inner join #TransactionLog f

on DropLSNs.[Transaction ID] = f.[Transaction ID]

where [Operation] = 'LOP_LOCK_XACT'

And [Lock Information] like '%ACQUIRE_LOCK_SCH_M OBJECT:%'

group by DropLSNs.[Current LSN],DropLSNs.[Transaction ID];

-- The lock information contains the object_id of the object

select oi.*, tl.[Lock Information]

FROM #ObjectInfo oi

INNER JOIN #TransactionLog tl

on tl.[Current LSN] = oi.ObjectLockLSN

if(OBJECT_ID('tempdb..#TransactionLog') IS NOT NULL)

DROP TABLE #TransactionLog ;

if(OBJECT_ID('tempdb..#ObjectInfo') IS NOT NULL)

DROP TABLE #ObjectInfo ;

Demo cleanup

Dropping the databases:

use master;

IF(DB_ID('DBLogReading') IS NOT NULL)

DROP DATABASE [DBLogReading];

IF(DB_ID('DBLogReading_COPY') IS NOT NULL)

DROP DATABASE [DBLogReading_COPY];

Author
Recent Posts

Jefferson Elias

Living in Belgium, I obtained a master degree in Computer Sciences in 2011 at the University of Liege.

I'm one of the rare guys out there who started to work as a DBA immediately after his graduation. So, I work at the university hospital of Liege since 2011. Initially involved in Oracle Database administration (which are still under my charge), I had the opportunity to learn and manage SQL Server instances in 2013. Since 2013, I've learned a lot about SQL Server in administration and development.

I like the job of DBA because you need to have a general knowledge in every field of IT. That's the reason why I won't stop learning (and share) the products of my learnings.

View all posts by Jefferson Elias

Latest posts by Jefferson Elias (see all)

How to perform a performance test against a SQL Server instance - September 14, 2018
Concurrency problems – theory and experimentation in SQL Server - July 24, 2018
How to link two SQL Server instances with Kerberos - July 5, 2018

Introduction

Why getting back information from transaction log?

How to get back information from the transaction log?

How to get back information from a transaction log backup file?

Demos

Related posts:
